8493
HEYCO HFC 1/2-TWIST

  • $312.0000 / C
  • UM : C
  • Weight: 0.0180

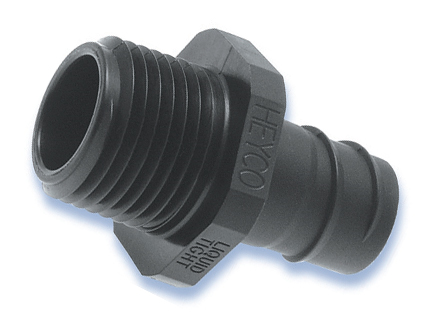

One-piece solution with smooth internal surfaces provides for easier wire routing, protection, and installation. Easy, permanent assembly: the installer twists the tubing over the connector ferrule. NPT threaded fittings are UL approved for use with Heyco-Flex I & II Conduit and Tubing. All nylon construction is resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
Product Specifications

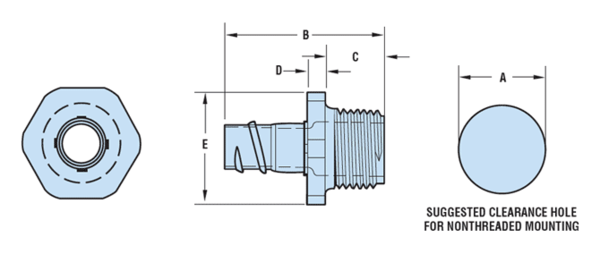

Description HFC 1/2-Twist
A- Mounting Hole Diameter (in) 0.875
A- Mounting Hole Diameter (mm) 22.2
B- Overall Length (in.) 1.72
B- Overall Length (mm.) 43.7
C- Body Length (in.) 0.63
C- Body Length (mm.) 15.9
D- Wrenching Nut Thk (in.) 0.2
D- Wrenching Nut Thk (mm.) 5.1
E- Wrenching Nut Flat Size in. 1.18
E- Wrenching Nut Flat Size mm 30
Alternate Part Number (Gray) 8494
Alternate Part Number 8493FC
