8485 | HEYCO HFC 3/8-S-TWIST

Back
  • $155.7930 / C
  • Out of Stock*
  • Available Only in Quantities of: 5
  • Log in to see if custom discounts apply
HEYCO HFC 3/8-S-TWIST
HEYCO HFC 3/8-S-TWIST
Click image to enlarge
HEYCO HFC 3/8-S-TWIST
HEYCO HFC 3/8-S-TWIST

8485
HEYCO HFC 3/8-S-TWIST

  • $155.7930 / C
  • UM : C
  • Weight: 0.0080

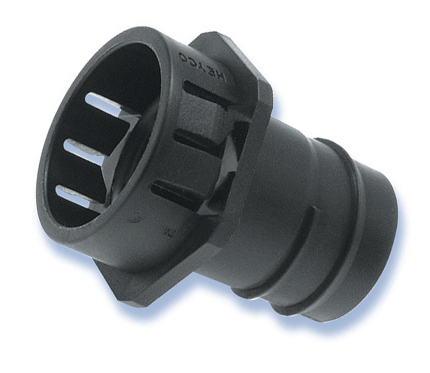

One-piece solution with smooth internal surfaces provides for easier wire routing, protection, and installation. Unique locking fingers accommodate various panel thicknesses. Snap-in Fittings are UL recognized for use with Heyco-Flex II tubing. Easy, permanent assembly: the installer twists the tubing over the connector ferrule. All nylon construction is resistant to salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.

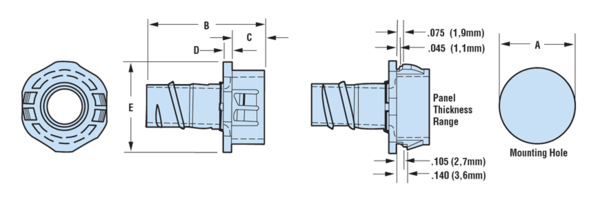

Product Specifications
Description HFC 3/8-S-twist
Fits Conduit/Tubing Trade Size 3/8
A- Mounting Hole Diameter (in) .875
A- Mounting Hole Diameter (mm) 22.2
B- Overall Length (in.) 1.38
B- Overall Length (mm.) 35
C- Body Length (in.) .39
C- Body Length (mm.) 9.9
D- Wrenching Nut Thk (in.) .09
D- Wrenching Nut Thk (mm.) 2.3
E- Wrenching Nut Flat Size in. 1.00
E- Wrenching Nut Flat Size mm 25.4
Alternate Part Number (Gray) 8486
Alternate Part Number 8485FC
  • Heyco-Flex Quick Twist Conduit Fittings Straight-Thru, Snap-In Hubs - Technical Data
  • View / Download
