S6530 | HEYCO MSS 14-2 1-POLE
S6530
HEYCO MSS 14-2 1-POLE
Click image to enlarge
S6530
HEYCO MSS 14-2 1-POLE
- $8.2400 / C
- UM : C
- Weight: 0.2000

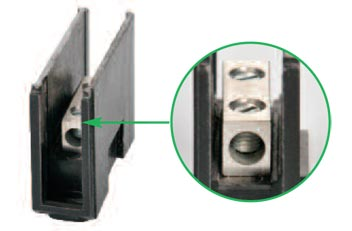

Heyco Modular Splice Block is a modular, interlocking power splicing block. Simply slip on and lock into place the number of poles needed for your application. Modular design reduces stocking requirements. Made of tin plated aluminum in order to provide reliable connectors for copper or aluminum wires. Blocks are molded in high-strength glass-reinforced polyester. Temperature Rating 90?C (194?F)
Product Specifications | |
---|---|
Description | MSS 14-2 1-Pole |
Line Side AWG | 2-14 |
Load Side AWG | 2-14 |
AMPS per Pole | 115 |

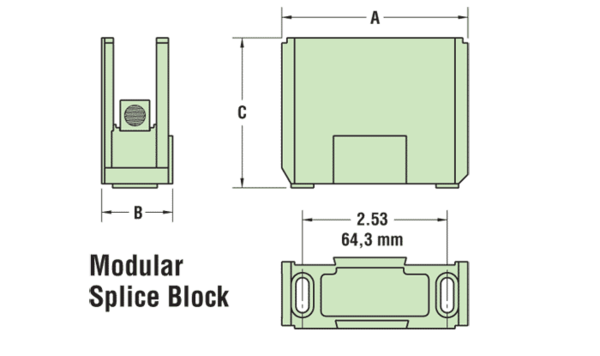

Length A | 2.9 |
Width B | 1.04 |
Height C | 2.34 |
×
