S6525 | HEYCO LC 14-4 1-POLE CU

Back
  • $331.5500 / C
  • Out of Stock*
  • Available Only in Quantities of: 1
  • Log in to see if custom discounts apply

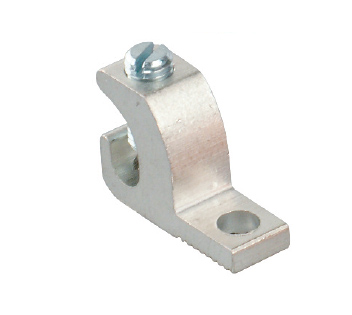

HEYCO LC 14-4 1-POLE CU
HEYCO LC 14-4 1-POLE CU
Click image to enlarge
HEYCO LC 14-4 1-POLE CU
HEYCO LC 14-4 1-POLE CU

S6525
HEYCO LC 14-4 1-POLE CU

  • $331.5500 / C
  • UM : C
  • Weight: 0.0500
For continuous grounding wire runs often found in solar applications. Available in plated and unplated versions. UL/CSA approved for direct burial; suitable for both indoor and outdoor use. Recommended wire range AWG 4 thru AWG 14. DFARS Compliant.
Product Specifications
Description LC 14-4 1-Pole Cu Tinned
Construction Tinned Copper with?Stainless Steel Set Screw
Wire Range AWG 4-14

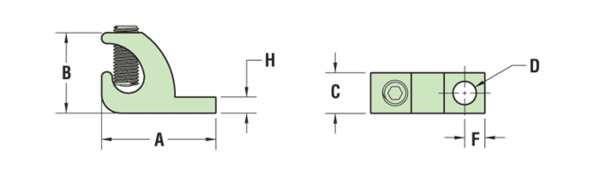

A 1.07
B 0.75
C 0.38
D 0.22
F 0.19
H 0.15
  • Heyco Copper and Aluminum LugRunners - Technical Data
  • View / Download
