F8902 | HEYCO FCL 13

Back
  • $84.1300 / C
  • Out of Stock*
  • Log in to see if custom discounts apply
HEYCO FCL 13
HEYCO FCL 13
Click image to enlarge
HEYCO FCL 13
HEYCO FCL 13

F8902
HEYCO FCL 13

  • $84.1300 / C
  • UM : C
  • Weight: 0.0200

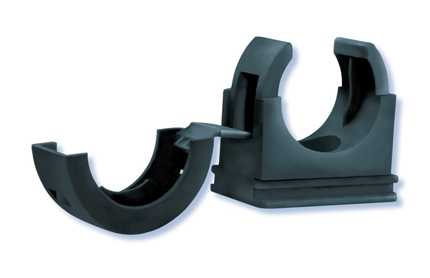

For mounting Heyco Nylon Corrugated Conduit or Tubing securely into place, vertically or horizontally. Type FPAS. Low profile design for space savings and pleasing appearance. Only fingertip pressure is required to snap conduit or tubing into bracket. Can be easily opened for temporary access/removal and closed again to secure conduit. Suitable for use with both fine and/or coarse pitch conduit/tubing. Suitable for use by original equipment manufacturers. Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents.
Product Specifications
Description FCL 13
Fits Conduit Size 13 mm

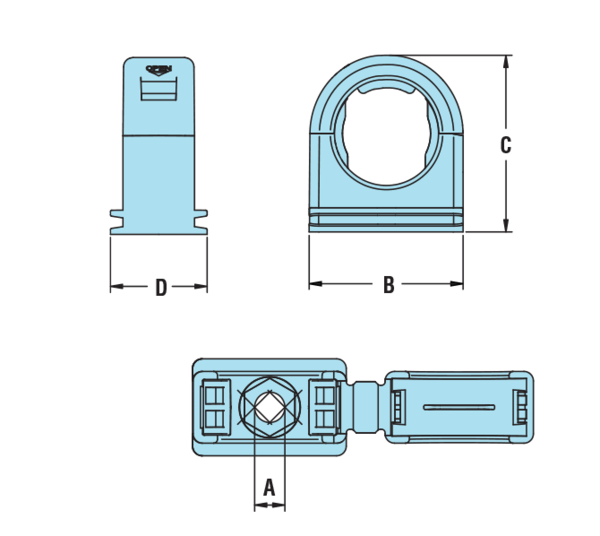

A- Mounting Hole Diameter (in) 0.197
A- Mounting Hole Diameter (mm) 5
B- Width (in.) 0.894
B- Width (mm.) 22.7
C- Max O.A. Height (in.) 1.093
C- Max O.A. Height (mm.) 26.4
D- Max O.A. Thickness (in.) 0.787
D- Max O.A. Thickness (mm.) 20
  • Heyco Nylon Conduit Tubing Mounting Clips - Technical Data
  • View / Download
