Sherex CPN Series 1/4-20 UNC, .280-.500 Grip Range
Click image to enlarge

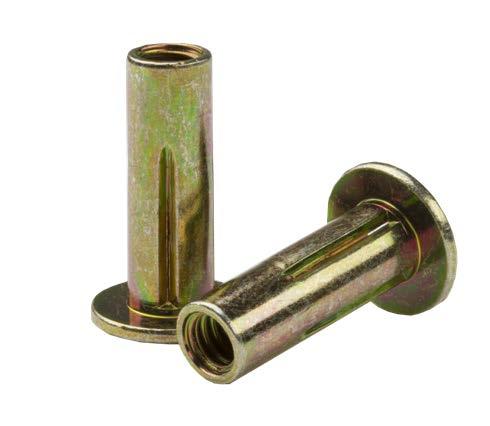

Sherex CPN Series 1/4-20 UNC, .280-.500 Grip Range

CPN2-2520-500
Sherex CPN Series 1/4-20 UNC, .280-.500 Grip Range

  • Call for Price
  • UM : M
  • Weight: 0.0165
The CPN series offers a large grip range for installation into single, variable or multiple thickness materials. Large backside footprint provides increased pull out resistance. Designed to be installed in thin plastics without distorting the base material. Inch body, inch and metric threads.
Product Specifications
Thread Size 1/4-20 UNC
Grip Range .280 - .500
Hole Size 0.347
Head Diameter 0.625
Head Height 0.059
Length 1.234
Diameter 0.346
Installed Length 0.505
Series CPN Series
Manufacturer Sherex
